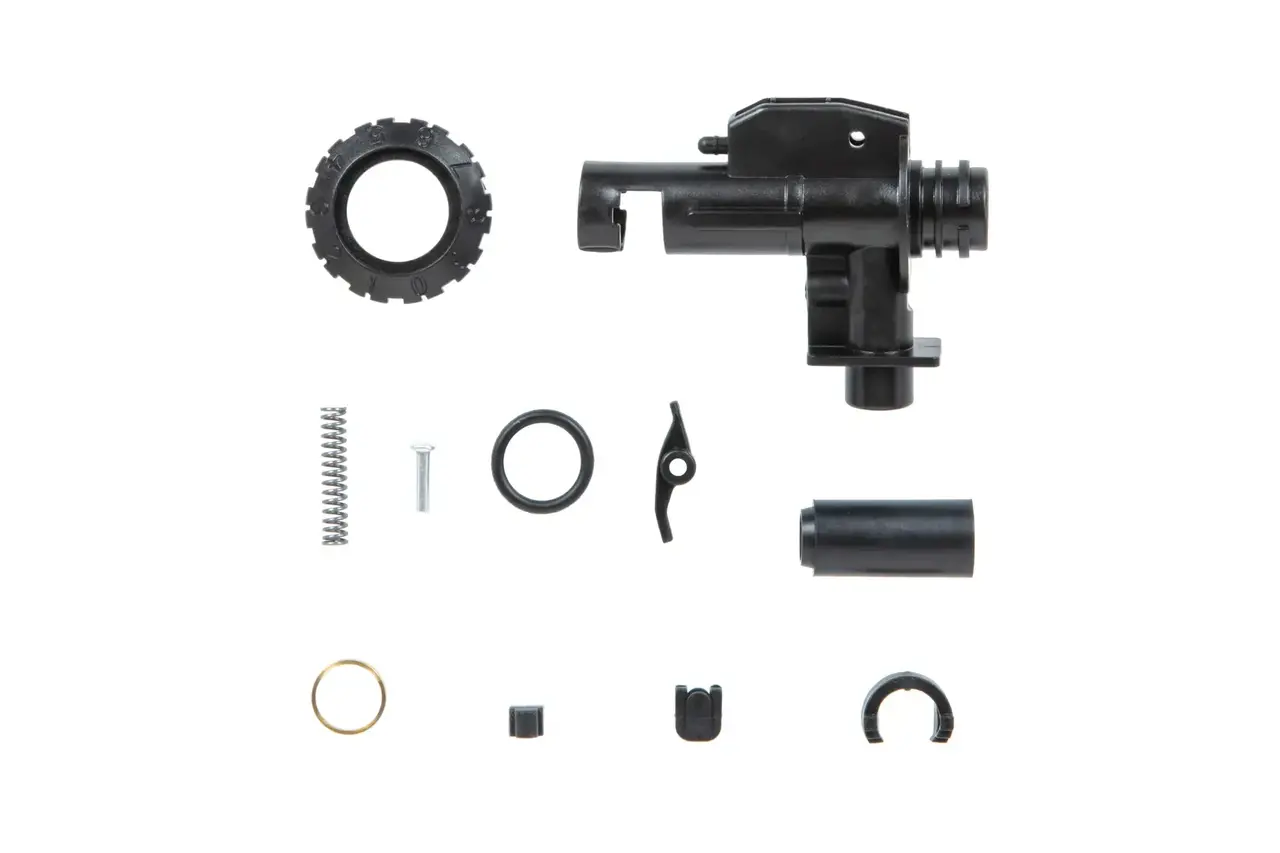

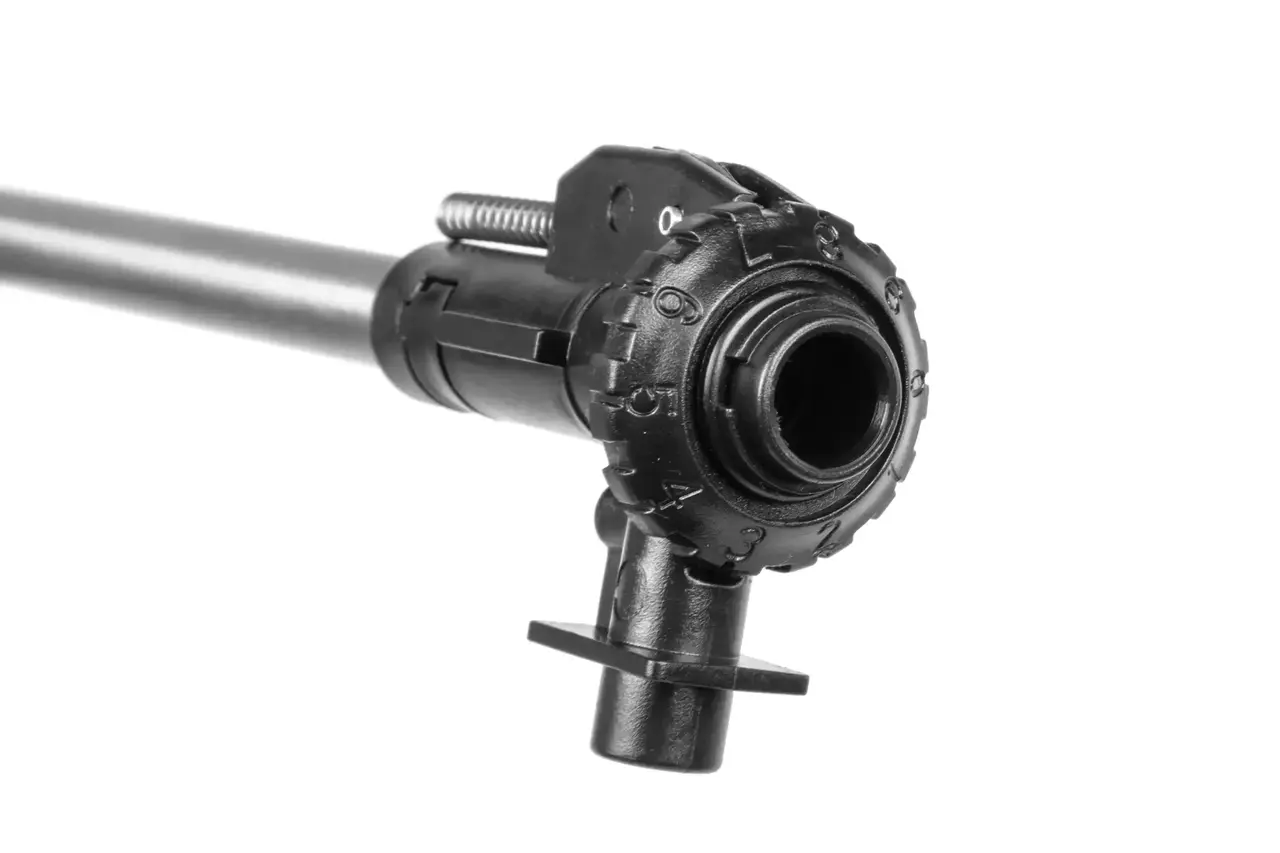

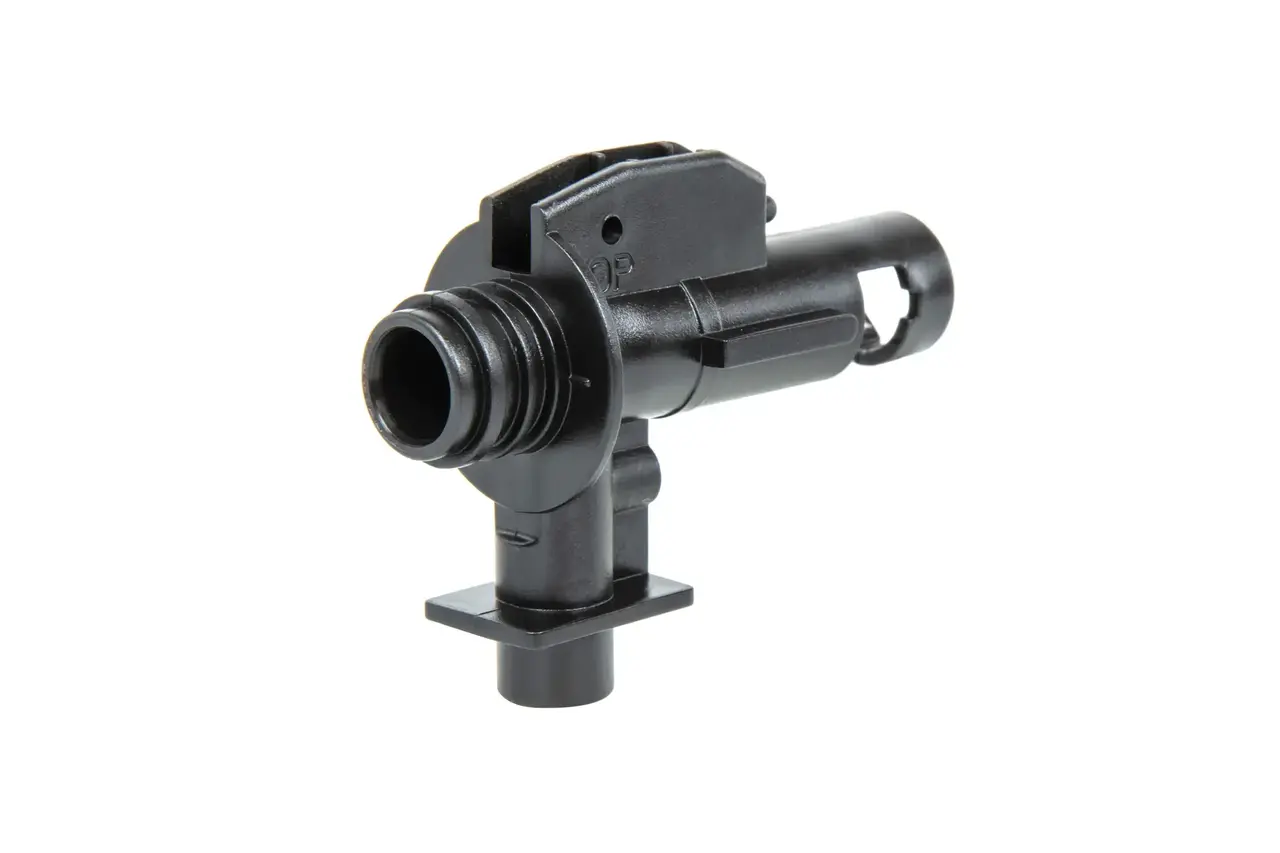

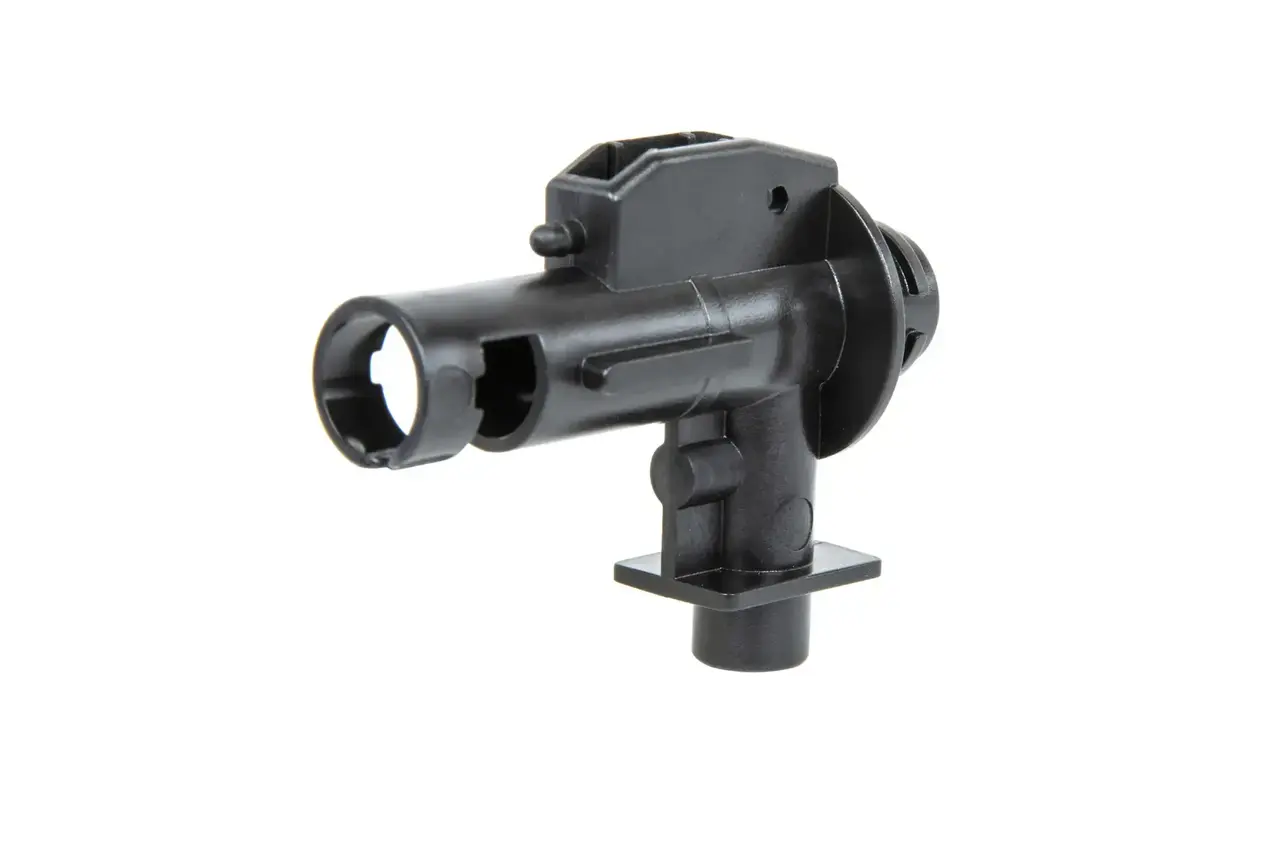

Specna Arms Hop-Up TDC Magnus™ Rotary Chamber with Helium™ Flat Hop rubber for M4/M16

A TDC hop-up chamber is a precision upgrade that distributes the pressure on the BB exactly centrally and evenly. The Specna Arms Hop-Up TDC Magnus™ Rotary Chamber with Helium™ Flat Hop Rubber has been developed to eliminate the limitations of standard hop-up systems, enabling M4 and M16 platforms to perform noticeably more consistently at medium and long ranges.

With many standard hop-up units, there is a slight variation in pressure distribution, causing BB trajectories to differ slightly from shot to shot. This difference often only becomes apparent when you switch to heavier BBs, fit a precision barrel or start shooting at longer ranges. It is precisely in these situations that this combination of TDC technology and Flat Hop configuration makes all the difference.

Why TDC technology offers a noticeable advantage

The TDC (Top Dead Centre) system applies the hop-up pressure precisely from above. This ensures that the contact surface between the bucking and the BB is loaded much more consistently than with traditional arm designs, where lateral deviations can occur.

In practice, this results in tighter groupings, less vertical spread and more predictable flight behaviour of the BB. Outdoor players and DMR users in particular notice that shots at longer ranges are less likely to veer off course, even when weather conditions change.

A common mistake is investing in an expensive precision barrel whilst the standard hop-up unit remains the weakest link. Without stable pressure distribution, the potential of a high-quality barrel is often not fully realised.

Helium™ Flat Hop Rubber and BB stabilisation

The included Helium™ Flat Hop rubber is a key component of this upgrade. Flat Hop systems create a larger contact surface with the BB, resulting in a more even build-up of lift during the shot.

This not only increases the distance, but above all ensures a more consistent spin on the BB. Many players focus solely on maximum distance, whilst consistent spin is actually the key to accuracy. A BB that spins in the same way every time maintains its trajectory better and reacts more predictably to wind conditions.

For users of high-quality 0.30g, 0.32g or heavier precision BBs, this often results in an immediately noticeable improvement.

Rotary adjustment for maximum control

Whilst standard hop-up wheels are sometimes prone to unwanted movement during use, the rotary design allows for extremely precise adjustments.

This is a major advantage for players who regularly switch between BB weights. A small adjustment can be made with precision, without the setting jumping several notches at once.

During long skirmishes or milsim events, the set hop is also maintained more effectively, which helps to ensure consistent performance throughout the entire day of play.

Integration within an optimised M4 or M16 setup

This upgrade is best suited to a platform that is already designed for precision and consistency. Think of an M4 DMR build, an optimised outdoor rifle or a milsim configuration where accuracy is more important than an extremely high rate of fire.

The combination of a precision inner barrel, high-quality heavyweight BBs and a stable nozzle seal generally yields the greatest improvement in performance. If any one of these components is lacking, some of the potential remains untapped.

An interesting practical insight is that many players mistakenly believe that more hop is always better. In reality, Flat Hop configurations often perform best when only the minimum lift required is applied. This reduces drag and keeps the trajectory more consistent.

Ergonomics, durability and ease of adjustment

The Magnus™ Rotary Chamber has been developed for users who wish to fine-tune their replica and then maintain that setting.

Under load, the adjustment remains stable, whilst the precision rotary design makes it easier to find the optimum setting for different BB weights. For players who regularly experiment with distances, shot configurations or BB weights, this saves a considerable amount of time during adjustment.

Key features

• TDC pressure distribution ensures precisely centred hop-up pressure, resulting in more consistent BB trajectories and tighter groupings.
• Rotary adjustment system enables extremely precise hop adjustments without any unwanted movement during use.
• Helium™ Flat Hop rubber increases the contact area with the BB for a more stable spin, improved lift and greater accuracy.
• Designed for precision builds and delivers maximum performance when used with precision barrels and high-quality heavy BBs.

Who is this upgrade suitable for?

This hop-up set is particularly of interest to players who have actively optimised their M4 or M16 for accuracy, range and shot consistency. Outdoor players, milsim participants and users of DMR set-ups generally benefit most from this upgrade.

For a standard CQB platform used primarily at close range, a simple hop-up configuration will often suffice. The advantages of TDC and Flat Hop become particularly apparent when accuracy at longer ranges is a key factor.

Premium precision builds benefit most from this, as the improved pressure distribution and BB stabilisation directly meet the higher demands placed on such setups.

Frequently Asked Questions

What is the advantage of a TDC hop-up system?
A TDC system distributes the pressure exactly at the centre of the BB. This results in fewer deviations in the trajectory and ensures that shots remain more consistent at longer ranges.

Does this chamber work with heavy BBs?
Yes. The combination of TDC technology and Helium™ Flat Hop rubber has been specifically developed to deliver optimum performance with heavier precision BBs.

Is this upgrade suitable for a DMR build?
Absolutely. It is precisely on DMR platforms that the benefits of improved groupings, consistent lift and precise tuning quickly become apparent.

Do I need a precision barrel to see any benefits?
No, but the greatest performance gains are usually achieved when this hop-up chamber is combined with a high-quality precision inner barrel.

Does the hop-up setting remain stable during use?
The rotary design has been developed to ensure precise and stable adjustment, thereby minimising unwanted shifts during prolonged use.

With the Specna Arms Hop-Up TDC Magnus™ Rotary Chamber with Helium™ Flat Hop Rubber for M4/M16, you’re investing in a precision upgrade that unlocks the full potential of your platform when accuracy, consistent trajectories and hit accuracy are your top priorities.
