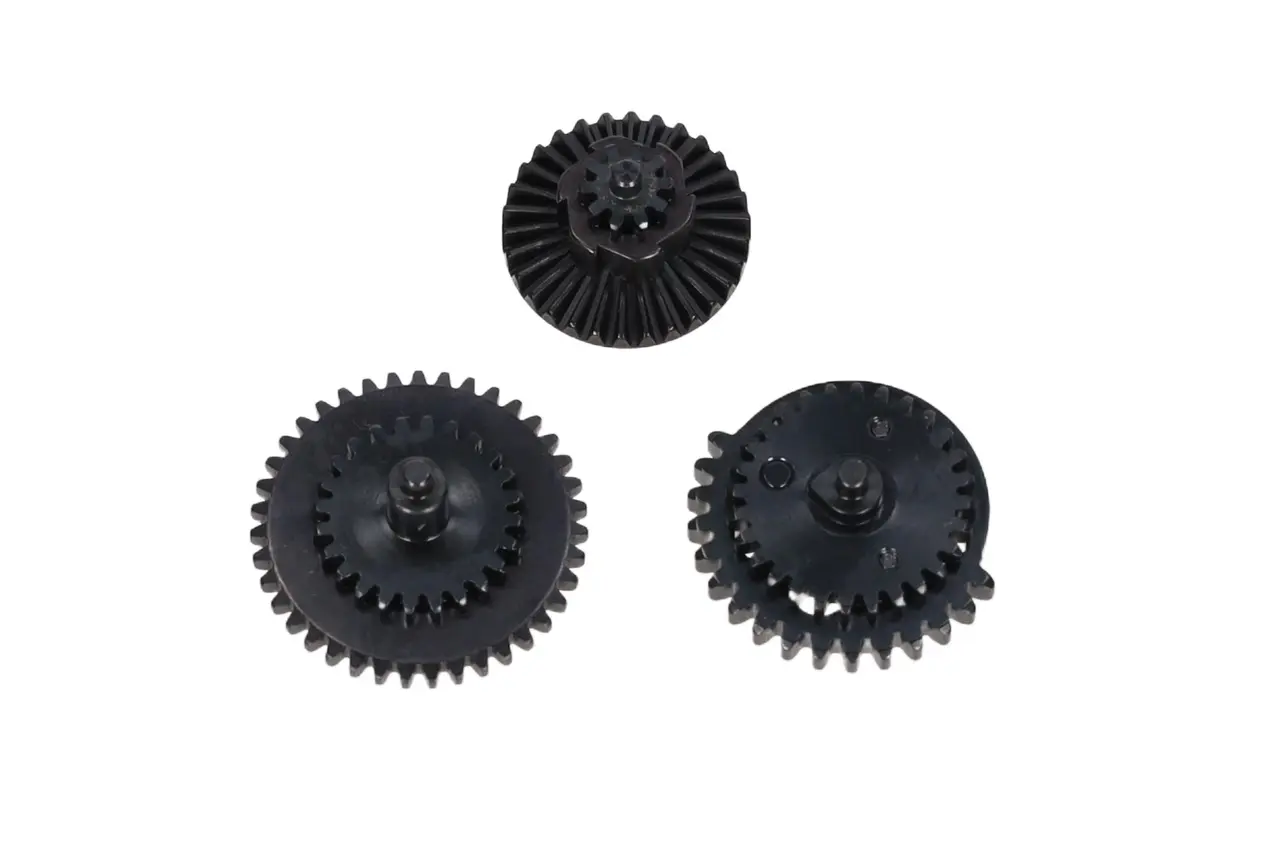

Specna Arms Oblivion 13:1 Precision Gear Set With Improved Timing

The Specna Arms Oblivion 13:1 Precision Gear Set with Improved Timing is a high-quality gear set for AEG gearboxes, developed for airsoft players and technicians who want to get the most out of their replica. Thanks to its fast 13:1 gear ratio, innovative Improved Timing and construction from hardened 40Cr steel, this gear set offers an excellent combination of speed, durability and reliability.

The Oblivion series is one of Specna Arms’ premium internal upgrade kits and is designed to work seamlessly with powerful high-torque motors, modern brushless motors and performance-oriented AEG builds.

Improved timing for a more reliable firing cycle

The key feature of the Oblivion series is the Improved Timing. This involves moving the point of contact of the tappet plate to the second tooth of the sector gear, resulting in more efficient control of the nozzle during each firing cycle.

This adjusted timing ensures a more reliable BB feed and reduces the risk of nozzle PME (Pre-Mature Engagement), even with replicas that have a high rate of fire. Particularly when used in conjunction with powerful high-torque or brushless motors, this results in smoother and more stable gearbox operation.

13:1 gear ratio

The 13:1 gear ratio has been developed for players who want to achieve a noticeably faster trigger response and a higher rate of fire than with a standard 18:1 or 16:1 configuration.

Thanks to the shorter gear ratio, the gearbox responds more quickly to every trigger pull and firing cycles are more efficient. This makes this gearset particularly suitable for fast semi-automatic builds and powerful fully automatic configurations where speed is a key factor.

Made from hardened 40Cr steel

The gears are manufactured from high-quality 40Cr steel, an alloy known for its high strength and excellent wear resistance. This ensures that the gears can withstand prolonged stress, powerful springs and intensive use.

Specna Arms also applies different hardness levels to the individual gears and shafts to achieve an optimal balance between wear resistance, strength and impact resistance.

Designed for high-performance builds

The Oblivion 13:1 Gear Set is designed for modern AEG set-ups where speed and reliability go hand in hand. Thanks to the choice of high-strength materials and improved timing, this gear set is ideally suited to powerful high-torque builds, brushless motors and other performance-oriented upgrades.

For optimum performance, it is recommended that the gear set be used in conjunction with a high-quality motor, correct shimming and a well-adjusted gearbox.

Precision manufacturing and quality control

Every Oblivion Gear Set is manufactured under strict quality control to ensure consistent dimensions and a precise fit. This ensures that the gears mesh perfectly, the power transmission runs smoothly and unnecessary wear is minimised.

When combined with a correctly adjusted gearbox, this contributes to quiet, efficient and sustainable operation.

Part of the Oblivion series

The 13:1 version forms part of Specna Arms’ extensive Oblivion series. Various gear ratios are available within this series, including 18:1, 16:1, 12:1, DSG (9:1) and 19 Teeth (SR25). This means there is a suitable configuration available for virtually every AEG build.

Practical insights

For many players, a 13:1 gearset is the ideal choice when a fast trigger response is important, without having to switch straight to a complex DSG configuration. Combined with a powerful high-torque or brushless motor, this gear ratio delivers noticeably faster performance in both semi-automatic and fully automatic modes.

Thanks to the Improved Timing, BB feed remains reliable even when the gearbox is running at high speed, ensuring that the replica continues to perform consistently over the long term.

Who is the Specna Arms Oblivion 13:1 Precision Gear Set suitable for?

The Specna Arms Oblivion 13:1 Precision Gear Set has been developed for airsoft players and technicians looking for a fast, durable and precision-manufactured gear set for their AEG. Thanks to its high-quality materials and improved timing, this gear set is suitable for both advanced tuning projects and high-performance builds where speed and reliability are key.

Key features

• Specna Arms Oblivion Precision Gear Set
• Gear ratio of 13:1
• Improved Timing for more efficient nozzle control
• Reduces the risk of a PME nozzle
• Made from hardened 40Cr steel
• Suitable for high-torque, High Torque and brushless motors
• Rigorous quality control to ensure a perfect fit

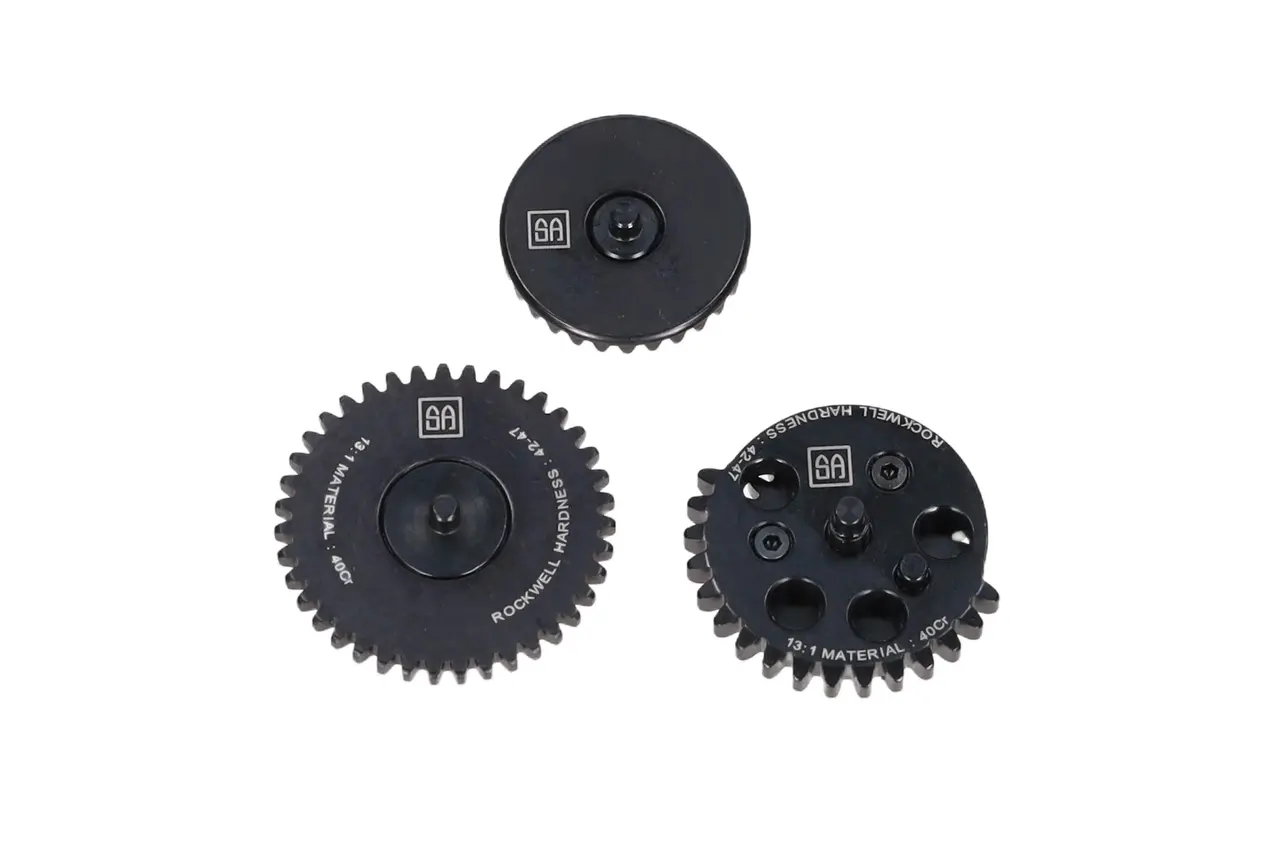

• Rockwell hardness:
  • Sector gear: HRC 42–50
  • Spur gear: HRC 42–50
  • Bevel gear: HRC 42–47
  • Gear shafts: HRC 55–60

Common mistakes

A common mistake is to combine a 13:1 gearset with a motor that lacks sufficient power or a poorly adjusted gearbox. For optimum performance, correct shimming, good lubrication and a motor suitable for the higher cycle speed are essential.

You should also check that the battery, spring and other internal components used are suitable for the desired performance of the replica.

Frequently Asked Questions

What does ‘Improved Timing’ mean?
‘Improved Timing’ means that the tappet plate is activated later, allowing the nozzle to move more efficiently and significantly reducing the risk of nozzle PME during high-speed builds.

What is the advantage of a 13:1 gearset over an 18:1 one?
A 13:1 gear ratio provides a significantly faster trigger response and a higher rate of fire than a standard 18:1 configuration.

What material are the gears made of?
The gearset is made from hardened 40Cr steel, which is known for its high strength and excellent wear resistance.

Is this gearset suitable for brushless motors?
Yes. The Oblivion series has been specially developed for use with modern brushless motors and high-torque configurations.

Is this gear set suitable for tuning projects?
Yes. Thanks to its fast gear ratio, improved timing and high-quality finish, the Oblivion 13:1 Gear Set is an excellent choice for performance-oriented AEG upgrades.

With the Specna Arms Oblivion 13:1 Precision Gear Set with Improved Timing, you’re choosing a durable and precision-engineered gear set that combines a fast trigger response, reliable BB feed and a long service life. An excellent upgrade for any AEG build where maximum performance and consistent operation are paramount.
